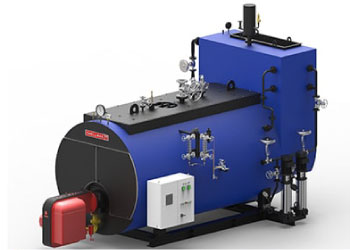

Shellmax
Shellmax is a packaged, three-pass smoke tube, with fully wet back boiler, when fitted with a special burner, these boilers are ideal for burning waste gases like biogas from decomposition of organic matter in distilleries, corex gas from the steel manufacturing process and liquid fuels.
Product Features
- 100% Skid ( up to 10 TPH ) mounted Plug and Play boiler .
- Multi-fuel option – light oils/heavy oils/gases .
- High dryness fraction steam increases usable heat .
- Comes with mono-block/ dual block/steam atomized burner with world renowned technology from Oilon, Finland .
- Large water holding capacity .
- Corrugated furnaces for boilers above 6 TPH capacity .
- Optional 3-element control systems for close monitoring of water level, steam flow & feed water flow .
- Thermowiz™ Panel & Thermowiz™ Plus panels for advance boiler monitoring & control .
- Overall efficiency of up-to 95 % with sensible heat recovery units & 103% with Dewtherm™.
Operating Range
- Capacities : Standard 1 to 16 TPH, customized designs available upto 34 TPH F&A 100 deg cel .
- Firing fuels : Standard – LDO, FO, LSHS & natural gas, customized design for other oil & gas fuels.
