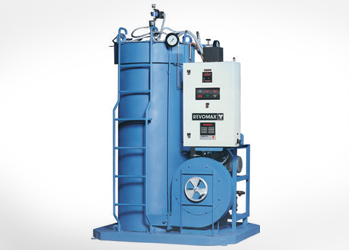

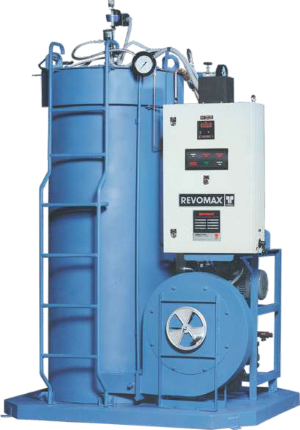

Revomax
Revomax, is a versatile, fully automatic, instant steam generating range of boilers designed for safe and reliable operations. Easy to install and commission, these time-tested boilers require very little maintenance. It features a specially designed furnace and combustion system to burn difficult heavy oils and offers fuel flexibility between light and heavy oils to help respond to fluctuating fuel prices.
Product Features
- Efficiency of 88% on NCV .
- Reverse flame technology .
- Unique patented membrane design .
- Built-in heat recovery device .
- Membrane design allows large tube diameter for coil enabling better steam dryness, less frequent de-scaling, longer coil life and minimum downtime .
- Unique economizer – optimizer design ensures maximum heat recovery without possibility of feed water pump failure due to boiling/ vapor causing cavitation’s and pump failure .
- Unique circulation burner design prevents leakage and eliminates fire hazard .
- Ceramic wool refractory allows fast cooling of top plate and easy maintenance .
- Easy access to all parts requiring maintenance .
- Powder-coated, well lit control panel for better life in industrial environment and easy monitoring.
Operating Range
- Capacities: From 100 to 850 Kg/hr .
- Firing fuels: Light oil, gas or dual fuel.
