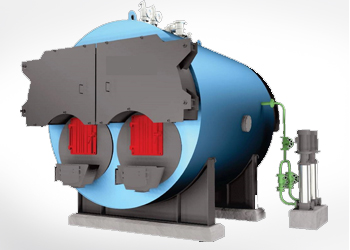

Woodpac
Woodpac is a two-pass, smoke tube boiler that can be fired on wood and optionally on oil .The boiler has a corrugated furnace all along its length. The front end and shell rear end is closed with the help of tube sheets. The flue tubes are fitted between the front and rear tube sheet. The flue tube opens into the smoke chamber. Spirals are provided inside the smoke tube to improve the effectiveness of heating surface. The rear door when opened, gives total access to the furnace, smoke tubes and spiral agitator.
Product Features
- Low cost heating .
- Integral furnace with spirals in the tubes – ensures high rate of heat transfer .
- Low stack temperature at boiler outlet .
- Hinged smoke chamber, making cleaning of tubes easy, also facilitates settling of ash .
- Supplied with forced draft primary air fan .
- Provided with secondary air ducting for complete combustion of wood .
- Wood fired boiler .
- Electrically driven water pumps.
Operating Range
- Capacities: 2- 4.5 TPH .
- Firing fuels : Wood & optionally oil.
