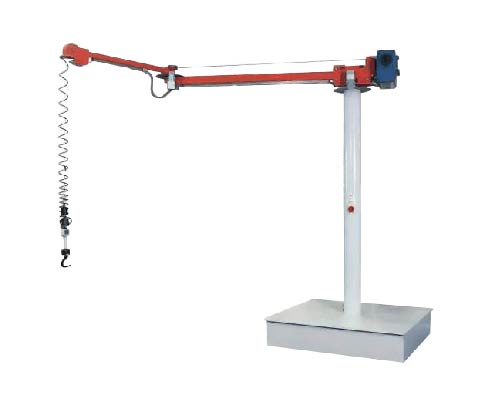

Pivot Arm
Our Pivot Arms fit perfectly on top of the pillars of pneumatic rope balancers and electric rope hoists. Since the mass is low during the movement of the arms, workers find this machine to be very convenient when it comes to material handling.
You can choose the right model based on weight of the parts to achieve the optimal ratio between payload and the deadweight that needs to be moved.
Our highly efficient and cost-effective heavy-duty design pivot arms can be fitted with pneumatic lifting axes or electric telescopic lifting devices with a load capacity of up to 500 kg.
Product Features
- Designed as per relevant standards and rules of FEM calculations.
- Equipped with electro-pneumatic brakes, slewing angle sensors and mobile base plate.
- Screw connections allow maximum flexibility.
- Both pillar-mounted and hanging type devices have an identical cylinder.
- Use of maintenance-free bearings, specially designed for ZASCHE.
- Use of special pneumatic cylinders for smooth running.
Operating Range
- Loads up to 115 kg and an outreach of up to 3,800 mm.
