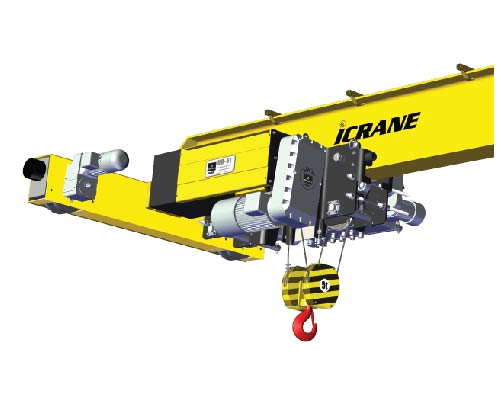

SGEOT Crane
The Single Girder EOT crane comprises a single cross beam which houses the hoist on a trolley on the bottom flange. This crane is predominantly used for standard duty work where the load size is nominal. It is recommended for M5/Fem 2M duty.
Our product ranges up to 10T with a span up to 30 meters. The optimised modular design is compliant with International FEM, ISO and IS standards with a circular variant also available.
A complete SGEOT crane consists of –
- 1 Girder
- 2 End Carriage Assemblies
- 1 Hoist with Trolley
- 1 Electrical Panel with Field Cables
USPs
- Optimised structural weight of the crane.
- Equipped with a short headroom hoist.
- Electromechanical overload device adds to the safety.
- The SGEOT offers flexibility. It can be designed over new or existing structure without the structures undergoing heavy changes.
- The combination of wheel-rail assures a long life.
- An adjustable stopper helps decide hoist travel as per the site requirement.
- Two stop limit switch helps with jerk-free stop during motion.
Product Features
- SWL Range varies from 1T to 10T with a lift height of 24 meters. .
- Low headroom or raised up crane as per the shed size. .
- Available with differing speeds for travel and hoist motion. .
- The welded box girder is designed for maximum rigidity and optimal deadweight. Effortlessly moving pendant on the independent C-Rail track. .
- End carriages are equipped with a jacking pad, sweeper plate and derailment guard as standard features to maximise safety. .
- Spherical roller bearings used as travel wheels.
Operating Range
- SWL UP TO: 12.5 T .
- SPAN UP TO: 30 Meters .
- LONG TRAVEL (LT) SPEED UP TO: 40 M/MIN .
- CROSS TRAVEL (CT) SPEED UP TO: 20 M/MIN .
- HOISTING SPEED UP TO: 8 M/MIN .
- HOISTING/ TRAVEL SPEED: DUAL SPEED OFFERED AS STANDARD VFD (Optional).
